RZ1MZ1-K
TOXFREE® RZ1MZ1-K is a LSZH cable, in case of fire, it does not emit toxic or corrosive gases, thereby protecting public health.
Typical applications of
TOXFREE® LSZH RZ1MZ1-K

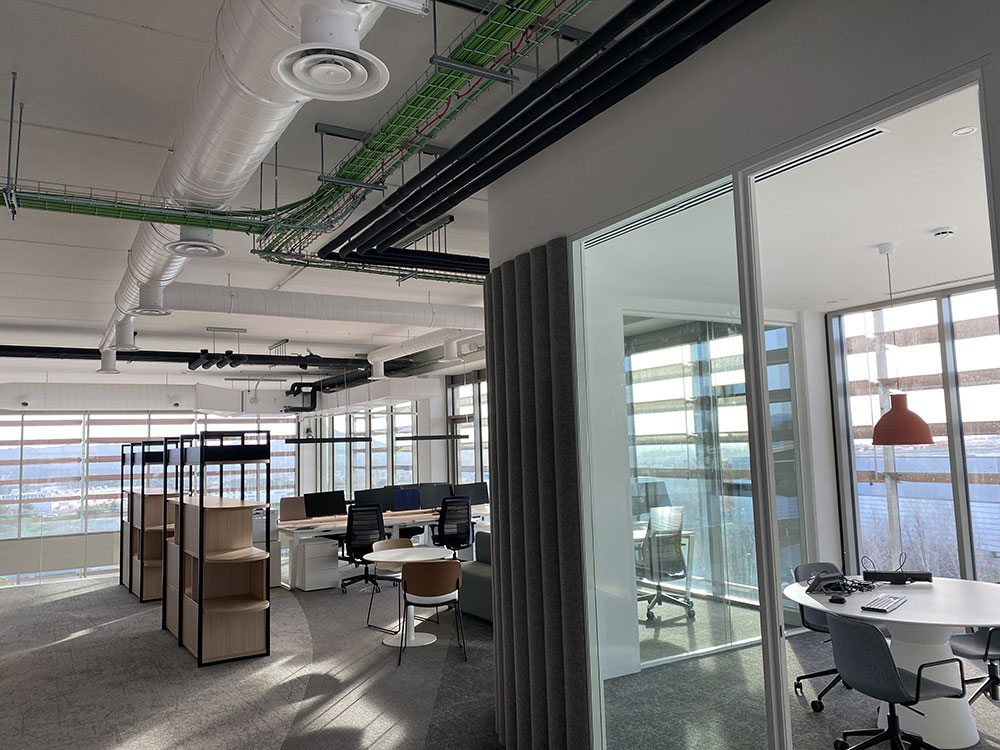

For public places, the TOXFREE® RZ1MZ1-K (AWA/SWA) cable offers reliable mechanical protection with its armoured construction and ensures safety through its LSZH low smoke, halogen-free outer sheath. It minimizes toxic fumes and smoke during fire incidents, making it ideal for public places.

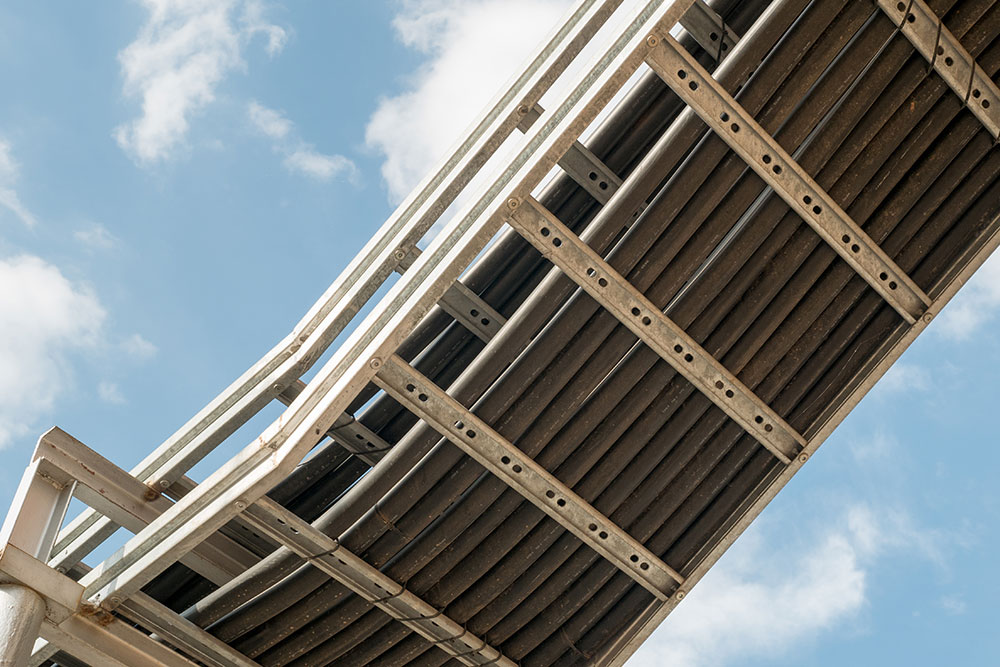

For industrial facilities, TOXFREE® RZ1MZ1-K (AWA/SWA) cables offer several advantages tailored to demanding power distribution applications: Robust Mechanical and Rodent Protection, LSZH Safety and Compliance in Industrial Environments, Suitable for Internal and External Power Distribution, Ability to Withstand Harsh Conditions and Enhanced Electrical Reliability.
TOXFREE® RZ1MZ1-K (AWA/SWA) is an armoured LSZH power cable engineered for tough industrial power distribution. Its galvanized steel wire armour (SWA) or aluminium wire armour (AWA) provides robust mechanical and rodent protection, suitable for internal, external, and direct burial installations. The XLPE insulation and halogen-free sheath ensure low smoke emission and toxic fumes reduction, enhancing safety during fire incidents and maintaining power reliability in critical industrial environments.
For public places, the TOXFREE® RZ1MZ1-K (AWA/SWA) cable offers reliable mechanical protection with its armoured construction and ensures safety through its LSZH low smoke, halogen-free outer sheath. It minimizes toxic fumes and smoke during fire incidents, making it ideal for public places.
For industrial facilities, TOXFREE® RZ1MZ1-K (AWA/SWA) cables offer several advantages tailored to demanding power distribution applications: Robust Mechanical and Rodent Protection, LSZH Safety and Compliance in Industrial Environments, Suitable for Internal and External Power Distribution, Ability to Withstand Harsh Conditions and Enhanced Electrical Reliability.
TOXFREE® RZ1MZ1-K (AWA/SWA) is an armoured LSZH power cable engineered for tough industrial power distribution. Its galvanized steel wire armour (SWA) or aluminium wire armour (AWA) provides robust mechanical and rodent protection, suitable for internal, external, and direct burial installations. The XLPE insulation and halogen-free sheath ensure low smoke emission and toxic fumes reduction, enhancing safety during fire incidents and maintaining power reliability in critical industrial environments.
Technical specifications
Application
TOXFREE® RZ1MZ1-K is a LSZH is a cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is highly recommended for public places, in hazardous areas with explosive gas atmospheres (ATEX), and installations in general where the cable is subject to risk of mechanical aggresion.
Construction
Conductor
Copper, class 5 (flexible).
Insulation
XLPE.
The standard identification according to HD 308, is the following:
1 x Natural.
2 x Blue + Brown.
3 G Blue + Brown + Green/Yellow.
3 x Brown+ Black+ Grey.
3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section).
4 G Brown + Black + Grey + Green/Yellow.
4 x Brown + Black + Grey + Blue.
5 G Brown + Black + Grey + Green/yellow + Blue.
6 or more: Black numbered + Green/Yellow.
Bedding
Polyolefin LSZH.
Armour
Galvanized steel wire armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable.
Outer sheath
Polyolefin LSZH.
Black colour.
Standards / Compliance
Standards and approvals
- CE.
- RoHS.
Construction Products Regulation
- Cca-s1b, d1, a2
Top Cable reserves the right to carry out any modification to the data sheets whatsoever without giving previous notice. All renders, specifications and particulars of weights, size and dimensions contained in this documentation is indicative only and shall not be binding on Top Cable.
Characteristics
0,6/1kV
Maximum conductor temperature: 90ºC.
Maximum short-circuittemperature: 250ºC (max. 5 s).
Minimum service temperature: -50ºC according to GOST 31996.
Minimum installation and handling temperature: 0ºC.
Flame non-propagation according to EN 60332-1 and IEC 60332-1.
Fire non-propagation according to EN 60332-3 / IEC 60332-3 and EN 50399.
Reaction to fire CPR: Cca -s1b, d1, a1 according to EN 50575.
LSZH (Low Smoke Zero Halogen) according to EN 60754-1 and IEC 60754-1.
Low smoke emission according to EN 61034 and IEC 61034.: Light transmittance > 60%.
Low corrosive gases emission according to UNE-EN 60754-2 and IEC 60754-2.
Minimum bending radius: x10 cable diameter.
Impact resistance: AG4 High severity.
Rodent proof
Chemical & Oil resistance: Acceptable.
UV resistant according to EN 50618.
Hydrocarbon resistant.
Potentially explosion hazard locations (ATEX).
Water resistance: AD5 Jets.
Open Air.
Buried.
In conduit.
Meter by meter marking.
Why choose our RZ1MZ1-K
-
As cable manufacturers, we ensure cost-effective premium quality and lasting performance.
-
Our in-house labs guarantee rigorous cable quality, reliability, and standards compliance.
-
Global cable delivery solutions—expert logistics for seamless supply.
-
Full cable stock, ready for fast delivery- shortest lead times.
-
EPD-certified cables: Sustainable manufacturing for your Scope 3 success.
-
Expert, friendly and professional sales team offering a fast & efficient customer service. Global customers are welcome!
RZ1MZ1-K FAQ FAQs
Click a question to reveal the answer.
The TOXFREE® RZ1MZ1-K is a low-smoke zero-halogen (LSZH) armoured power cable designed for fixed installations that demand both enhanced mechanical protection and superior fire safety. It is particularly suited for public spaces, hazardous areas with explosive gas atmospheres (ATEX), and any environment where the cable may be exposed to mechanical aggression. Its LSZH properties ensure that in the event of fire, no toxic or corrosive gases are released, protecting both people and sensitive electronic equipment. The cable conforms to IEC 60502-1 for power cables with extruded insulation rated up to 1.8/3 kV.
The cable employs cross-linked polyethylene (XLPE) insulation and a polyolefin LSZH bedding and outer sheath, which together eliminate the emission of halogen acids and dense smoke during combustion. This design meets the requirements of the Construction Products Regulation and achieves a reaction-to-fire classification of Cca B2ca LSZH, making it a safer choice for installations where human evacuation and equipment preservation are critical. Unlike PVC-based cables, the RZ1MZ1-K does not produce corrosive gases that can damage steel structures and electronic circuits.
For multi-core variants, the cable features a galvanized steel wire armour that provides excellent mechanical protection against impact, crushing, and tensile stress, making it ideal for direct burial and industrial environments. Single-core cables are fitted with aluminium armour instead, which avoids parasitic currents that could overheat the cable and compromise performance. This dual approach ensures optimal electromagnetic compatibility and thermal stability, fully aligning with IEC 60502-1 installation requirements.
The conductor is annealed copper, class 5 flexible stranded according to IEC 60228, offering easy handling and reliable connectivity. Insulation is cross-linked polyethylene (XLPE), type GP 8 per IEC 60502-1, which provides excellent thermal stability and a maximum continuous operating temperature of 90°C. Core identification follows HD 308, with standardized colour codes such as blue + brown for two-core, and green/yellow for the protective earth in three-core and above, ensuring consistent and safe wiring across installations.
Yes, the cable is specifically recommended for use in hazardous areas with explosive gas atmospheres (ATEX). Its robust construction, LSZH safety features, and compliance with IEC 60502-1 make it a reliable choice for petrochemical plants, mining, and other high-risk locations. The aluminium armour on single-core cables prevents circulating currents that could create hot spots, while the overall low-smoke design contributes to safety during a fire. Chinne Electric supplies this cable as part of its TOXFREE® range, engineered to mitigate risks in extreme industrial settings.
