Strut Channel

Strut channel is a specialized support profile with inward lips and an open slot designed for channel nuts and strut fittings. C channel and U channel are broader shape descriptions based on the cross-section. It is useful for solar brackets, photovoltaic support, pipe support frames, conduit supports, equipment frames and structural support systems. The slot design should consider bolt size, anchor position and channel strength.

In many solar, construction and MEP projects, buyers may search for slotted C channel, galvanized U channel, C strut channel, or U strut channel when they actually need a compatible strut support system.

Metal framing channel is used to build modular frames, brackets, racks and supports. It can support pipes, electrical conduits, cable trays, HVAC ducts, solar panels, control panels, equipment frames and rooftop services.

Because it is a bolted framing system, it can be adjusted or modified more easily than welded steel frames. Eaton describes strut systems as support solutions for electrical, mechanical and datacomm applications in commercial and industrial environments.

A channel support system is a complete assembly made from strut channels, channel nuts, spring nuts, fittings, pipe clamps, conduit clamps, beam clamps, threaded rods, base plates and brackets.

For buyers, purchasing the channel and accessories as a complete system helps ensure that the slot width, channel lip, thread size, fasteners, fittings and surface finish are compatible.

A bolted framing system is a support structure assembled with bolts, nuts, fittings and channels instead of welding. Strut channel is one of the most common products used for this type of system.

It is suitable for pipe racks, cable tray supports, solar support structures, machine guarding, panel stands, ceiling grids, equipment frames and industrial support systems.

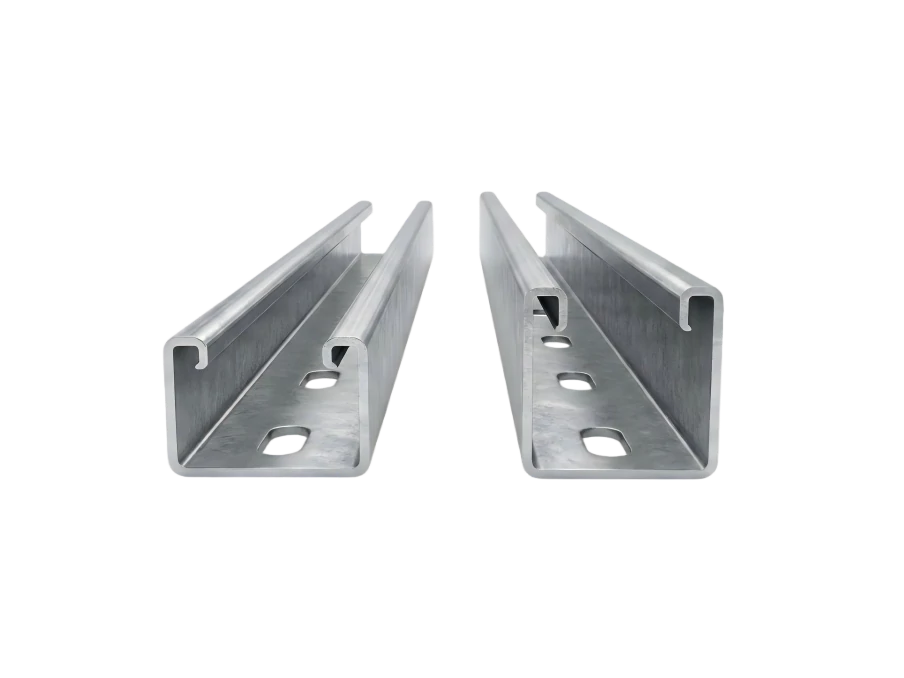

A slotted strut channel has elongated holes along the back of the channel. These slots make it easier to fasten the channel to concrete, steel structures, walls, roofs, solar frames or base plates.

It is commonly used for conduit support, pipe support, cable tray support, HVAC duct support, solar mounting channel, trapeze support and rooftop support frames.

A plain strut channel has no slots or holes on the back. It is also called solid strut channel or solid back strut channel.

Plain channel is often used when the project requires a cleaner surface, fewer openings, higher local stiffness, or a stronger web area. It is suitable for equipment frames, machine supports, industrial framing, posts, uprights and heavy-duty structures.

A perforated strut channel has holes or slots punched into the channel body. The perforations may be long slots, short slots, round holes, oval holes or custom hole patterns.

This type is useful for fast installation and field adjustment in MEP supports, solar brackets, pipe support frames, conduit racks, cable tray supports and structural support frames.

Back-to-back strut channel is made by joining two strut channels back to back. It is also called double strut channel.

This design improves rigidity and load capacity. It is suitable for heavy-duty support frames, uprights, columns, solar mounting structures, pipe racks, gantry frames, equipment stands and industrial framing systems. Professional strut suppliers describe back-to-back channels as useful where stronger, more stable support is required.

Double strut channel is used when a single channel is not strong enough or when both sides of the frame need open slots for mounting accessories.

It is commonly used for two-sided pipe clamps, solar panel support structures, equipment frames, utility racks, large trapeze supports, heavy cable tray supports and structural framing.

41×41 mm strut channel is one of the most common sizes for general support applications. It is widely used for pipe support, conduit support, cable tray support, solar mounting, HVAC support, wall brackets and trapeze hangers.

This size balances strength, accessory compatibility and installation convenience. Many professional product ranges list 41×41 mm among standard strut channel sizes for construction and solar support applications.

41×21 mm strut channel is a shallow profile used for light-duty support or compact installation spaces.

It is suitable for small conduit runs, light pipe supports, instrument supports, low-profile brackets, wall-mounted supports and light cable management systems. Buyers should check load capacity and span before choosing a shallow channel.

41×62 mm and 41×82 mm strut channels are deeper profiles used for higher loads and longer spans.

They are suitable for heavy pipe support, large cable tray support, solar ground mounting frames, rooftop service supports, equipment platforms and industrial support structures.

1-5/8 inch strut channel is a common imperial strut size used in electrical, mechanical and construction support systems.

Typical forms include 1-5/8 × 1-5/8 inch channel and 1-5/8 × 13/16 inch shallow channel. Professional distributors often list these channels for trapeze supports, seismic bracing, framing and suspension applications.

12 gauge strut channel is thicker and normally used for heavier-duty support. 14 gauge strut channel is common for medium-duty installations. 16 gauge strut channel is lighter and suitable for lower-load applications.

Gauge affects load capacity, channel weight, deflection, span and cost. Buyers should also confirm the channel size, steel grade, finish, support spacing and fixing method.

Common lengths include 3 meters, 6 meters, 10 feet and 20 feet, depending on the market and project specification.

Custom cut lengths are also available for project supply. Buyers should confirm length tolerance, burr removal, cut-edge protection, packing method and bundle quantity.

Yes. Custom strut channel can be made according to drawings, photos, samples or project specifications.

Customization include thickness, length, slot, material, surface finish, zinc coating,HDG, color coating, packing and matched fittings. For OEM or project supply, buyers should provide the application, load requirement and installation environment.

Common materials include carbon steel, mild steel, galvanized steel, stainless steel 304, stainless steel 316, aluminum .

Steel is common for construction and industrial supports. Stainless steel is used for corrosion resistance. Aluminum is selected for lighter structures.Professional sources list steel, stainless steel, aluminum and fiberglass options for strut channel systems.

Pre-galvanized strut channel is formed from galvanized steel coil. It is commonly used for indoor or mild-environment applications.

It is suitable for conduit support, cable tray support, light pipe support, HVAC support and general construction framing. Buyers should remember that cut edges and punched holes may have less zinc protection than a fully hot-dip-galvanized product.

Hot dip galvanized strut channel is galvanized after forming or fabrication, giving stronger surface protection for outdoor and industrial environments.

It is commonly used for solar mounting structures, rooftop supports, industrial plants, utility corridors, infrastructure projects, outdoor pipe supports and cable tray supports. Hot dip galvanized and pre-galvanized finishes are commonly treated as different options in professional strut product ranges.

Powder coated strut channel has a colored protective coating over the channel surface. Common colors include black, green, white, grey or project-specific colors.

It is used for visible support frames, indoor MEP systems, equipment frames, architectural supports, color-coded installations and clean commercial spaces.

Stainless steel strut channel is used where corrosion resistance, hygiene or long service life is important.

Typical applications include chemical plants, food processing facilities, pharmaceutical plants, water treatment plants, cleanrooms, laboratories, marine environments and outdoor industrial supports. SS304 is common for general corrosion resistance, while SS316 is preferred for more aggressive environments.

Aluminum strut channel is used where lower weight and corrosion resistance are important.

It is suitable for light support frames, solar accessories, instrument supports, temporary structures, equipment frames and clean indoor installations. Buyers should check load capacity, span and galvanic corrosion risk when aluminum is connected with other metals.

ZAM channel usually refers to steel with a zinc-aluminum-magnesium coating. It is often used in solar photovoltaic brackets, PV support structures and outdoor mounting systems because the coating is designed for corrosion resistance.

Buyers should confirm the material grade, coating type, coating thickness and project environment before selecting ZAM U channel or ZAM C channel.

A complete strut channel system may include channel nuts, spring nuts, flat plate fittings, angle fittings, U brackets, Z brackets, splice plates, post bases, beam clamps, pipe clamps, conduit clamps, cushion clamps, threaded rods, U-bolts, washers, bolts, end caps and cantilever arms.

Professional accessory categories commonly include angle brackets, beam clamps, U-bolts, channel nuts, spring nuts, conduit clamps, pipe clamps and fittings.

A channel nut is a special nut that fits inside the open slot of a strut channel. It allows bolts and fittings to be fixed at adjustable positions.

Common types include plain channel nuts, spring nuts, short spring nuts, long spring nuts, cone point nuts and serrated channel nuts. They are used with brackets, clamps, fittings and base plates.

A spring nut has a spring attached to the nut body. The spring holds the nut in position inside the channel before the bolt is tightened.

Spring nuts are useful for overhead installation, vertical support frames, trapeze hangers, wall brackets, solar supports, pipe supports and conduit support systems.

Strut fittings are connectors used to join strut channels or attach other components. Common types include flat plates, angle fittings, corner brackets, U fittings, Z fittings, T plates, splice plates, gusset plates and post bases.

They allow contractors to build modular steel frames, pipe racks, equipment supports, solar structures and cable management supports without welding.

Beam clamps connect strut channel, threaded rod or support assemblies to steel beams without drilling or welding the beam.

They are commonly used in industrial plants, warehouses, commercial buildings, steel structures, MEP installations, pipe hangers, conduit supports and cable tray supports. MEP hardware suppliers describe strut clamps and beam clamps as support devices for piping and other MEP installation applications.

Pipe clamps secure pipes to strut channel. They are used for plumbing pipes, fire sprinkler pipes, HVAC pipes, chilled water lines, gas pipes, process piping and utility lines.

Pipe clamp options may include standard pipe clamps, rubber-lined pipe clamps, cushion clamps, heavy-duty clamps and U-bolts depending on pipe size, vibration and environment.

Conduit clamps secure electrical conduit to strut channel. They are used with EMT conduit, rigid conduit, IMC conduit, flexible conduit and electrical raceway systems.

Conduit clamps help organize electrical pathways in commercial buildings, industrial plants, data centers, tunnels, utility corridors and infrastructure projects.

A cushion clamp is a pipe or tube clamp with a non-metallic insert. It helps reduce vibration, noise and surface damage.

It is used for hydraulic lines, refrigeration pipes, instrument tubing, mechanical pipework, HVAC systems and equipment supports.

A post base connects a vertical strut channel to a floor, concrete base, steel frame or equipment platform.

It is used for uprights, support posts, solar frames, guard frames, panel stands, pipe racks and industrial framing systems. The post base should match the channel size, load direction, anchor type and surface finish.

A cantilever strut bracket is a support arm fixed to a wall, column or vertical frame. It extends outward to support services.

It is commonly used for cable tray support, cable ladder support, pipe support, conduit support, HVAC duct support, instrument support and utility mounting.

Threaded rod, also called all-thread rod, is used to suspend strut channel from ceilings, beams or overhead structures.

A typical overhead support uses two threaded rods and one horizontal strut channel to support cable trays, ductwork, pipes, conduits, busbar or mechanical services.

A trapeze support system is an overhead assembly made with threaded rods and horizontal strut channel.

It is widely used for electrical conduit, cable tray, cable ladder, wire mesh cable tray, HVAC duct, plumbing pipe, fire sprinkler pipe and mechanical service support.

A concrete insert channel is a strut-type channel embedded in concrete walls, floors or ceilings. It provides an adjustable fixing point for later installation.

It can support mechanical systems, electrical conduits, plumbing fixtures, pipe supports and cable tray supports while reducing the need for post-installed anchors. Professional catalogs describe concrete insert strut channel as a continuous slotted channel for concrete floors, walls or ceilings.

Yes. Strut channel is widely used to support cable trays, cable ladders, wire mesh cable trays, cable basket trays and cable trunking.

It can be installed as a wall bracket, ceiling trapeze, floor-mounted frame, cantilever support or equipment room support. Cable tray support is one of the common applications listed in professional rooftop and MEP support systems.

Yes. Strut channel is commonly used for electrical conduit support, including EMT conduit, rigid conduit, IMC conduit, PVC conduit and flexible conduit.

It helps keep conduit runs aligned and organized in commercial buildings, industrial plants, data centers, warehouses, tunnels and utility corridors.

Yes. Strut channel is widely used for pipe support systems, including plumbing pipes, fire sprinkler pipes, chilled water pipes, gas pipes, process pipes and utility lines.

The right design should consider pipe diameter, pipe weight, fluid weight, insulation, thermal movement, vibration, corrosion environment and support spacing.

Yes. Strut channel can support HVAC ducts, ductwork, ventilation systems, air handling equipment, rooftop HVAC units and mechanical service frames.

Rooftop support catalogs often list pipe, HVAC, duct, conduit and cable tray support as common rooftop applications for strut-based supports.

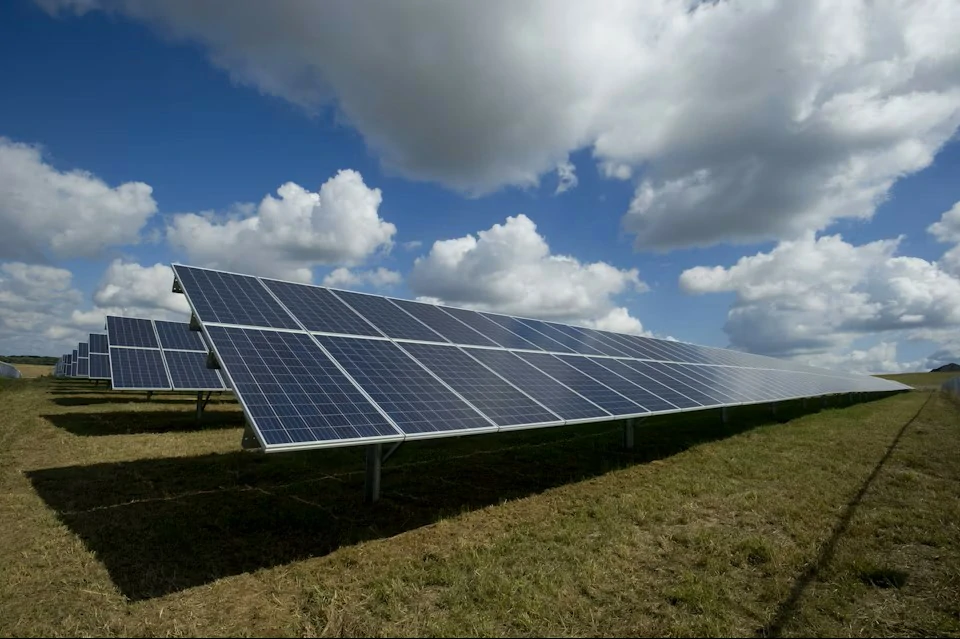

Yes. Solar strut channel is widely used in PV mounting systems, photovoltaic brackets, solar panel support structures, solar ground mounting frames, roof solar brackets, solar carports, inverter frames and combiner box supports.

For solar projects, buyers should consider wind load, corrosion resistance, slot accuracy, fastener compatibility, grounding design and outdoor service life. Professional solar strut pages describe strut channels as structural support elements for PV modules, cable trays, combiner boxes and inverter racks.

Yes. Strut channel is suitable for rooftop pipe supports, rooftop conduit supports, rooftop cable tray supports, rooftop HVAC frames and solar roof mounting supports.

Rooftop applications should consider roof membrane protection, non-penetrating support design, wind load, drainage, UV exposure, corrosion resistance and load distribution. Professional rooftop support suppliers commonly use standard 1-5/8 inch channel strut with hot-dipped galvanized or stainless steel metal components.

Yes. Strut channel is suitable for data center cable management, overhead cable tray support, busbar support, conduit runs, cooling pipe support, equipment frames and service corridors.

Data centers require organized routing, clean installation and future adjustability. Industry articles describe pre-engineered strut channel solutions as useful for installing complex cable routing systems in data center infrastructure.

Yes. Strut channel can be used for industrial framing, process pipe support, electrical conduit racks, instrument frames, cable tray supports, machine guarding, equipment stands and maintenance structures.

Industrial projects should consider vibration, corrosion, load capacity, chemical exposure, temperature, grounding and maintenance access.

Yes. Strut channel can be used in petrochemical plants, mining projects, power stations, water treatment plants, tunnels, railway stations, airports, utility corridors and infrastructure projects.

These environments often require heavy-duty strut channel, back-to-back channel, hot dip galvanized finish, stainless steel, reliable fasteners and clear load data. Professional strut system pages list commercial, industrial, petrochemical, mining, infrastructure and data center support applications.

Buyers should choose strut channel based on application, load, span, deflection, material, finish, channel size, thickness, slot pattern, accessories, installation method and project documentation.

For example, pre-galvanized shallow channel may suit indoor conduit support. Hot dip galvanized deep channel or back-to-back strut channel may be better for outdoor solar mounting, rooftop supports, pipe racks and heavy-duty industrial frames. Buyers should also request load charts, technical data sheets, material certificates, zinc coating information, installation drawings and project submittals when the project requires engineering documentation.
