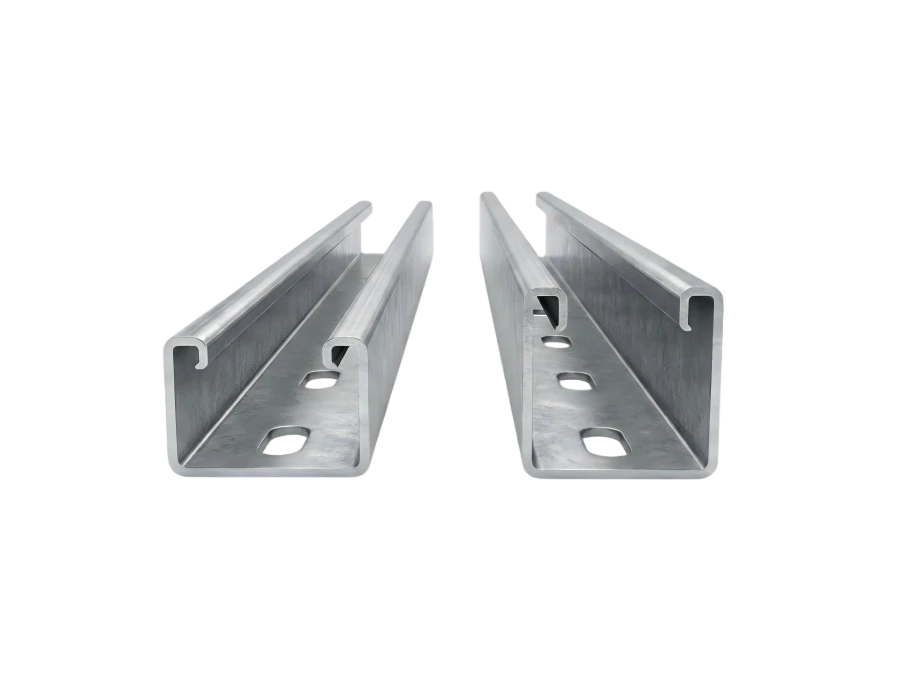

Strut Channel 41x41mm
Chinne Electric Strut Channel 41×41 mm is the industry-standard cold-formed C-channel framing system for supporting cable trays, cable ladders, conduits, pipes, ductwork, and heavy M&E services. With full 41 mm depth, it delivers higher load capacity than shallow 41×21 mm profiles—making it the preferred choice for trapeze hangers, multi-tier support frames, plant rooms, and demanding commercial and industrial installations.
General information
Product Features
- Industry-standard full strut: 41 mm wide × 41 mm deep—the most widely used strut profile in mechanical, electrical, and construction support systems worldwide.
- High load capacity: Full-depth section provides superior bending strength and span capability compared to shallow 41×21 mm half-strut—suited to heavy cable trays, large conduit runs, HVAC ductwork, and multi-service trapeze assemblies.
- Weld-free modular framing: Continuous slotted channel with inturned lip edges allows channel nuts, spring nuts, and brackets to be positioned anywhere along the length—no welding or on-site drilling for most connections.
- Complete system compatibility: Works with the full range of standard 41 mm strut accessories including angle brackets, beam clamps, cantilever arms, threaded-rod hangers, pipe clamps, and combination framing fittings.
- Adjustable, reusable, demountable: Support layouts can be modified, extended, or reconfigured during installation or future building upgrades without replacing the channel.
- Multiple duty ratings: Light-duty (typically 1.5 mm) for economical installations; heavy-duty (typically 2.5 mm / 12 gauge) for maximum strength applications.
Dimensions & Specifications
Strut Channel 41×41 mm is the full-depth member of the 41 mm strut family and the industry reference profile for channel support systems.
Typical profile dimensions (indicative):
| Parameter | Value |
| Nominal width | 41 mm |
| Nominal height | 41 mm |
| Profile type | Shallow / half-strut C-channel |
| Thickness | 1.1mm to 3mm |
| Configuration | Slotted (perforated) or plain |
| Standard lengths | 3000 mm / 6000 mm |
| Custom lengths | Available on request |
Technical Specifications
- Product type: Slotted strut channel (channel support system)
- Profile: 41 × 41 mm full-depth C-channel with inturned lip edges
- Manufacturing: Cold-formed from low-carbon strip steel
- Standard length: 3000 mm / 6000 mm (custom cut lengths available)
- Material options: Mild steel, stainless steel (SS304 / SS316L), aluminum
- Wall thickness: 1.5 mm (light duty) / 2.5 mm (heavy duty, 12 gauge)
- Slot pattern: Continuous slotted holes along one face (slotted variants); compatible with M10 / M12 channel nut and bolt assemblies
- Surface finish: Pre-galvanized (PG), hot-dip galvanized (HDG), powder coated, fire-retardant powder coated
- Accessory compatibility: Full range of standard 41 mm strut nuts, brackets, washers, and fixings
- Customization: Custom lengths, materials, finishes, slot configurations, and accessory packages available upon request
Surface Treatment Options
Different finishes are available for various environments.
| Aspect | Powder Coated | Pre-Galvanized (PG) | Hot Dip Galvanized (HDG) |
|---|---|---|---|
| Primary Objective | Corrosion protection & aesthetics | Cost-effective corrosion protection for indoor use | Heavy-duty corrosion protection, weather resistance |
| Surface Material / Treatment | Standard polyester, epoxy, or hybrid powder (organic polymers) | Zinc-coated steel sheet (pre-galvanized coil) | Zinc-iron alloy layer (pure zinc by hot-dip process) |
| Process | Electrostatic spray deposition + heat curing | Continuous galvanizing before forming | Immersion in molten zinc bath (~445 °C) forming metallurgical bond(pre-fabrication) |
| Coating Thickness | 60–120 µm | Typically 10–30 μm | Typically ≥65 µm (can be increased for aggressive environments) |
| Fire Performance | Combustible, produces smoke, no cable protection | Non-combustible (steel base) | Non-combustible (steel base), but no thermal insulation; zinc may vaporize under intense fire, cables still damaged |
| Corrosion Protection | Moderate (indoor, dry environments) | Moderate (indoor, dry environments) | Excellent (suitable for outdoor, marine, salt spray, chemical plants) |
| Surface Finish | Smooth, uniform gloss, wide colour range | Smooth, metallic, uniform | Dull silver-grey, may have zinc spangles or runs |
| Governing Standards | IEC 61537 | IEC 61537, EN 10346 | IEC 61537, ISO 1461 / ASTM A123 |
| Typical Applications | General indoor, offices, commercial spaces without special fire or severe corrosion | Indoor installations, commercial buildings | Outdoor cable trenches, coastal facilities, wastewater treatment, chemical plants, high humidity / high temperature areas |
| Relative Cost | Low | Low | Medium-high |
Applicable standards:
- BS 6946 (channel support systems)
- GB/T 23639-2017, JB/T 10216-2013 (cable support system reference)
- Compatible with IEC 61537 cable tray and cable ladder systems when used as the support structure
Technical Description
Strut channel is a modular metal framing system consisting of a cold-formed C-channel section with inturned lip edges and a continuous row of slotted holes. Hardened, toothed channel nuts engage the inturned lips to create secure, adjustable connections at any point along the channel—enabling weld-free assembly of support frameworks using only wrenches and standard fasteners.
The 41×41 mm profile is the industry-standard full-depth strut and the most widely specified size for mechanical, electrical, and plumbing (MEP) support work. Its square cross-section delivers the highest load capacity within the 41 mm strut family, making it suitable for:
- Heavy cable tray and cable ladder suspension
- Multi-tier trapeze hanger assemblies
- Large-bore pipe and HVAC duct support
- Structural equipment mounting frames
- Seismic and lateral bracing applications (where specified)
- Industrial racking, shelving, and modular framing
In cable management systems, 41×41 mm strut channel forms the primary structural support from which cable trays, cable ladders, mesh trays, basket trays, and conduit systems are suspended or wall-mounted—typically using threaded-rod trapeze hangers, cantilever brackets, or direct channel-to-structure fixings. Channel support systems are governed by BS 6946; the cable trays and ladders they carry comply with IEC 61537 and related national standards.
Chinne Electric 41×41 mm strut channels are supplied in slotted and plain configurations, with material and finish options matched to indoor, outdoor, and corrosive-environment project requirements. Channels can also be combined in back-to-back or face-to-face arrangements to increase load capacity for demanding spans.
Applications
- Cable management: Suspended and wall-mounted supports for cable tray, cable ladder, mesh tray, basket tray, and cable containment systems
- Conduit systems: GI/EMT conduit runs, busbar supports, and cable containment mounting frames
- Pipe & mechanical services: Process piping, chilled/hot water, compressed air, and mechanical service hangers
- HVAC: Ductwork suspension, air-handling unit supports, and ventilation framework
- Trapeze & multi-tier supports: Threaded-rod trapeze hangers carrying multiple services on a single support frame
- Electrical plant rooms: Distribution boards, switchgear frames, panel mounting, and equipment brackets
- Structural framing: Industrial racking, shelving, equipment platforms, and modular steel frameworks
- Building services: Ceiling grids, soffit-mounted services, riser supports, and plant room coordination structures
- Infrastructure & industrial: Power plants, manufacturing facilities, data centers, transportation hubs, oil & gas, and renewable energy installations
Customization
- Custom cut lengths and project-specific packaging
- Material: carbon steel, stainless steel (SS304 / SS316L), aluminum
- Finish: Pre-Gi, HDG, standard powder coat, aluminum
- Slotted or plain profile
- Light-duty (1.5 mm) or heavy-duty (2.5 mm) gauge
- Bundled accessory packages: channel nuts, brackets, threaded rod, washers, and fixings
Strut Channel 41x41mm FAQ FAQs
Click a question to reveal the answer.
The Chinne Electric strut channel profile measures 41 mm in height by 21 mm in width, conforming to the dimensional requirements of IEC 61537. The standard material thickness is 2.0 mm, while a 2.5 mm gauge is available for heavy-duty configurations requiring enhanced load capacity. Standard lengths are supplied at 3 000 mm, with custom lengths available upon request. The channel features elongated slots measuring 14 mm by 28 mm, spaced at 50 mm intervals along the continuous slotted design.
The 41x21mm shallow strut channel is a cold-formed C-channel with half the depth of a standard 41x41mm profile, specifically engineered for low-clearance ceiling runs, wall-mounted supports, and restricted-depth mechanical and electrical installations. Despite its reduced depth, it remains fully compatible with standard 41 mm strut nuts, brackets, and support accessories. The continuous slotted design with inturned lips enables adjustable, bolt-in-place fixing along the entire length, making it suitable for mounting cable trays, conduits, pipes, ductwork, and equipment brackets in space-constrained environments.
This strut channel conforms to the dimensional and performance requirements specified in IEC 61537, the international standard for cable tray systems and cable ladder systems. Additionally, the product references BS 6946, the British Standard for metal channel support systems. Dimensional tolerances, material grades, and mechanical load data are verified through type testing conducted at accredited third-party laboratories, ensuring reliable performance in building wiring, industrial equipment, and commercial installations.
The shallow-profile strut channel is designed for light-to-medium-duty mechanical, electrical, and plumbing (MEP) support applications where mounting depth is limited. Primary uses include cable containment systems, conduit and pipe supports, ductwork mounting, and equipment bracket installation in low-clearance ceiling voids and wall-mounted configurations. It is suitable for building wiring, industrial equipment setups, and commercial installations that require dependable structural support and compliance with international standards such as IEC 61537.
Yes, the 41x21mm strut channel maintains full compatibility with standard 41 mm strut nuts, brackets, and support accessories. The continuous slotted design with inturned lips allows for adjustable, bolt-in-place fixing along the full length of the channel. This interoperability ensures that installers can utilize existing 41 mm channel nuts and fittings without requiring specialized components, streamlining procurement and installation across projects involving cable tray supports, conduit mounting, and modular framing systems.
